ObsidianWire®

LP Ultimate JP

'The Ultimate' Wiring for Les Paul® // 'JP' Mod

$313.00 AUD
$313.00 AUD
Shipping calculated at checkout.

Super Easy, Solder-less Install
Features:

  • Selectable '50s' // 60s Plus' Wiring
  • Dual SC // Coil Splitting
  • 'Series' Mode Switching
  • Phase Switching
  • Solder-less Install
  • Fits Gibson Les Paul
  • Fits Epiphone with Adjustments

* REQUIRES FOUR CONDUCTOR PICKUPS

More information View images

FAST SHIPPING

5 YEAR WARRANTY

&
&
&
ObsidianWire Pro-Wired Les Paul Switch
&

'The Ultimate' for Les Paul

  • Selectable '50s' // '60s Plus' Wiring

    Select between 'Vintage 50s' and Obsidian '60s Plus' wiring, for each pickup for ultimate tone shaping.

    Learn More

  • Dual SC // Coil Splitting

    Turn your humbuckers in to single coils for lower output Strat & Tele like sounds. One easy control splits both pickups.

    // Operated by the Neck Volume

  • 'Series' Mode Switching

    SERIES // PARALLEL SWITCH

    Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

    // Controlled by Neck Tone Control

  • Phase Switching

    Play your neck and bridge pickups out of phase for those classic Les Paul sound made famous by Brian May and Jimmy Page.

    // Controlled by the Bridge Tone Control

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



'The Ultimate' Wiring for Les Paul® // 'JP' Mod

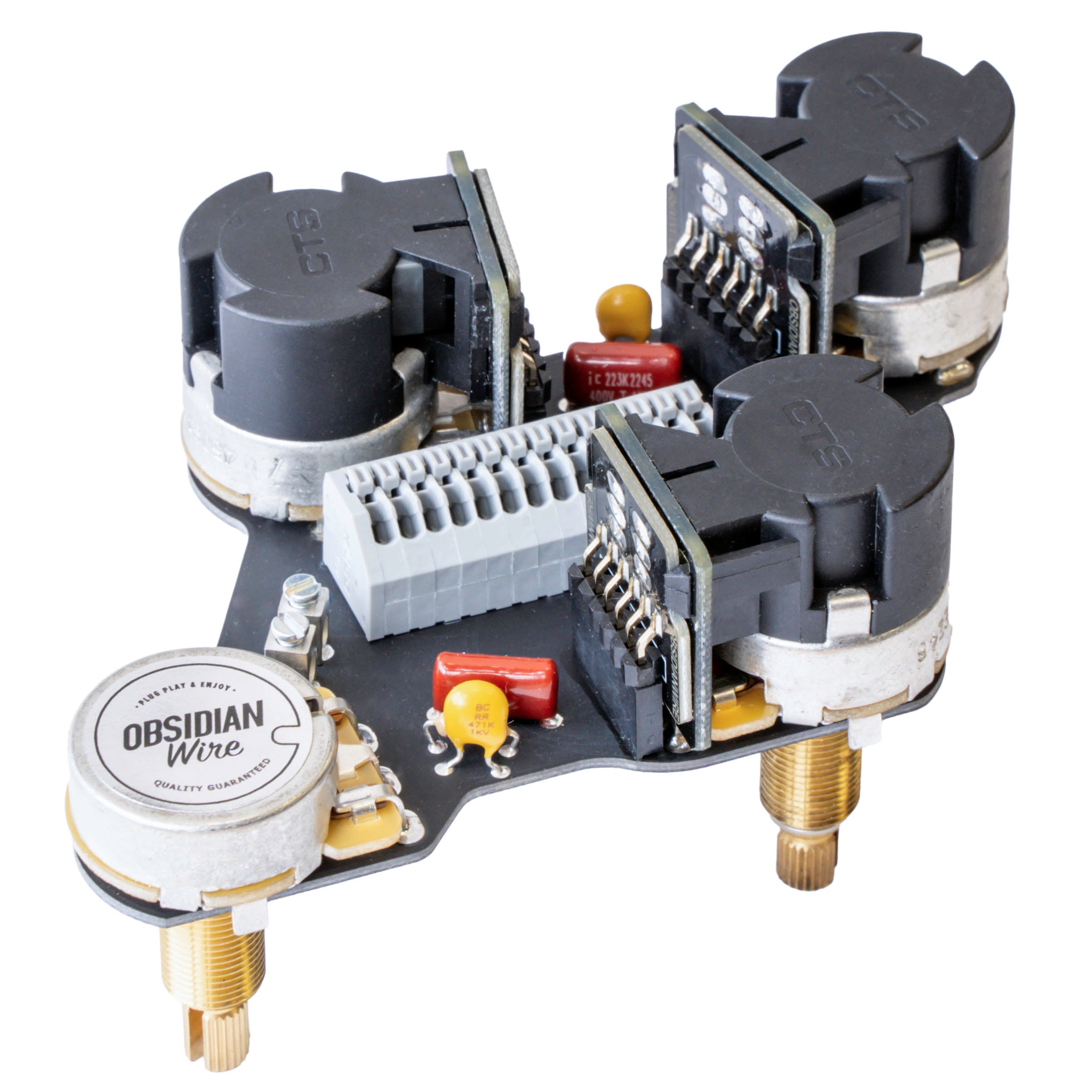

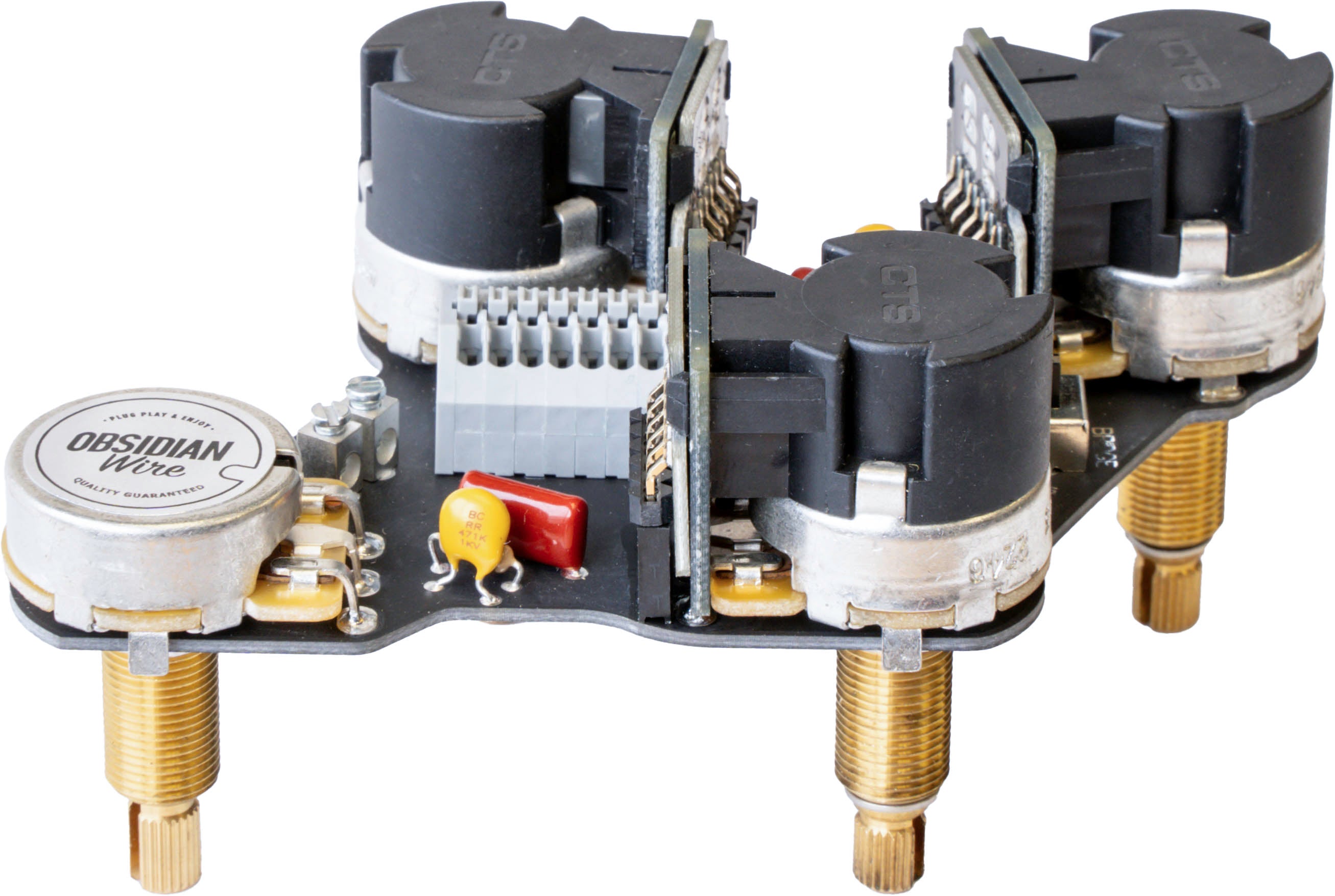

'The Ultimate' wiring for Les Paul® is a full featured and comprehensive wiring upgrade, designed to give you all of the best Les Paul sounds in one setup.

Based on the wiring used by Jimmy Page, but even more versatile.

The extra sounds are activated using three push / pull pots, so no extra mods are required to the body of your guitar.

  • REQUIRES FOUR CONDUCTOR PICKUPS

FEATURES:

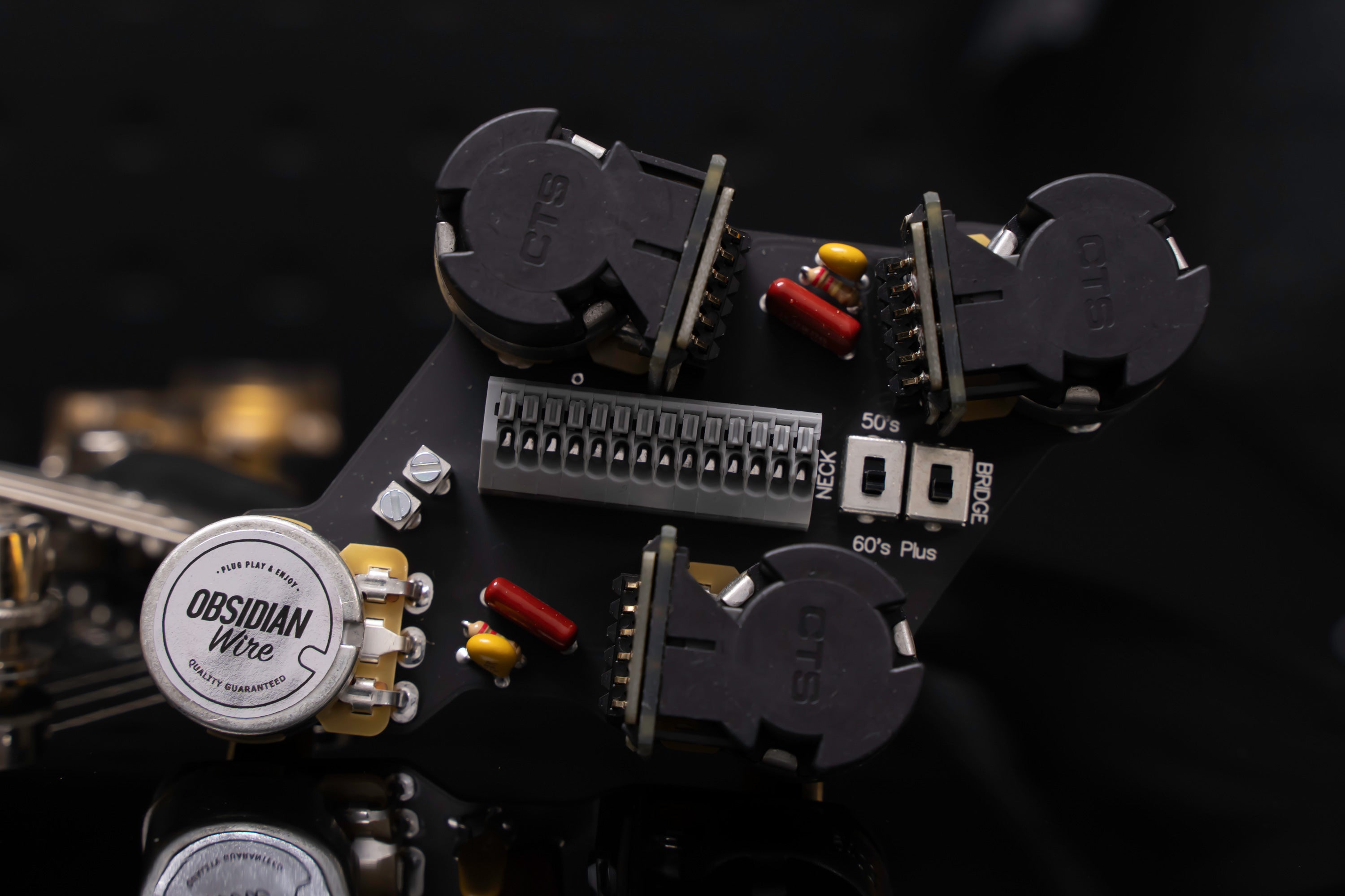

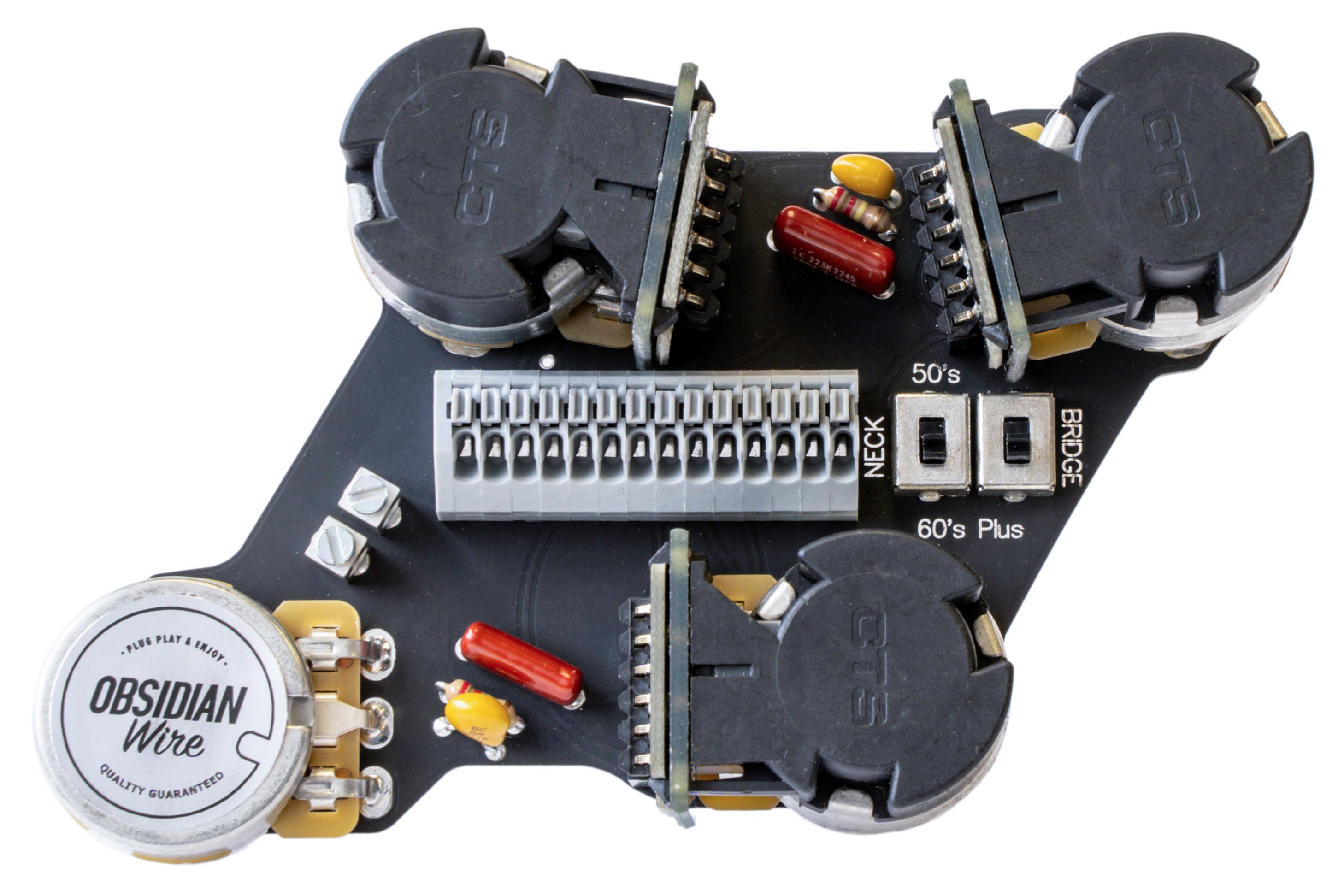

'VINTAGE 50'S' MODE

Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.

'60'S PLUS' MODE

Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

The Obsidian® '60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.

For a full run down on different Les Paul wiring types, check out our full guide - Click Here

DUAL SC (COIL SPLIT)

Turn your humbuckers in to single coils, and back again
To add true versatility to your guitar we build in Obsidian® Dual SC, allowing you to split your humbuckers in to single-coils for lower output, more dynamic tones.

// Controlled by Neck Volume Control

'SERIES' MODE SWITCHING

Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

// Controlled by Neck Tone Control

NOTE: This also mutes the bridge/lead pickup when played alone

PHASE SWITCHING

Play your neck and bridge pickups out of phase for those classic Les Paul sound made famous by Brian May and Jimmy Page.

// Controlled by the Bridge Tone Control

Specs

BUILT IN HOUSE WITH

  • Potentiometers: ObsidianWire® Custom CTS® 500k Pots (+/-10%) Split Shaft / 24 Spline
  • Capacitors: (0.022uf) (+/-5%)
  • Switch: ObsidianWire® Pro-Wired Toggle Switch
  • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

Compatibility

Requires Four Conductor Pickups

MADE TO FIT

  • Gibson® Les Paul®
  • *MOST Epiphone® Les Paul®

*Always check layout guide below and fit info below.

NOT compatible with 90s Korean built Les Paul.
NOT compatible with three pickup Les Paul.

  • Always Check: Layout Guide
  • Hole Size: 3/8" (9.5mm) mounting holes
  • Knobs: Use Only US spec 24 spline knobs (Do NOT use metric / 'Import' style knobs
  • Pickups: Requires Four Conductor Pickups

DOES NOT FIT

  • Does NOT fit: Lefty, three pickup Les Paul®, or any other guitar or Les Paul® Copy.

Install
