Custom Shop: Loaded Control Plate for Jazz Bass®

Regular price
$198.00 AUD
Regular price
Sale price
$198.00 AUD
Shipping calculated at checkout.

Have us build your dream Loaded Jazz Bass control plate, complete with a set of Obsidian® Pro-Wired™ Electronics and a high quality control plate and knobs

Super Easy, Solder-less Install

  • Custom Loaded Jazz Bass Control Plate
  • Built with Obsidian® Pro-Wired™ Electronics
  • Full Brass Obsidian® Control Plate
  • High Quality Knobs
  • Super Easy, Solderless Install

Custom Shop: Built to Order

Fast Build Time: Ships in 2-5 Business Days

Express Shipping Available: DHL Express

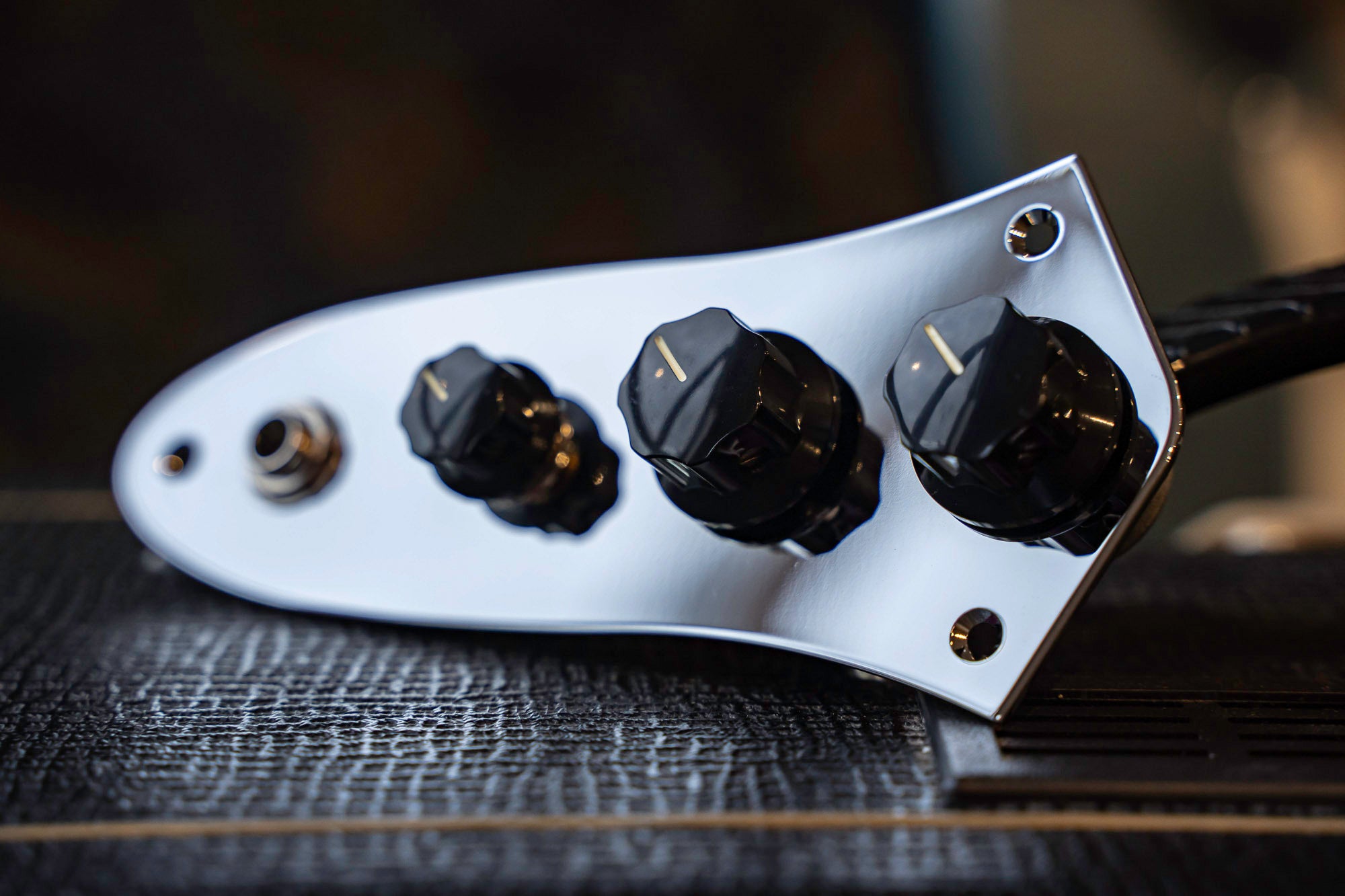

ObsidianWire custom loaded control plate for jass bass showing chrome plate with black knobs on a white background

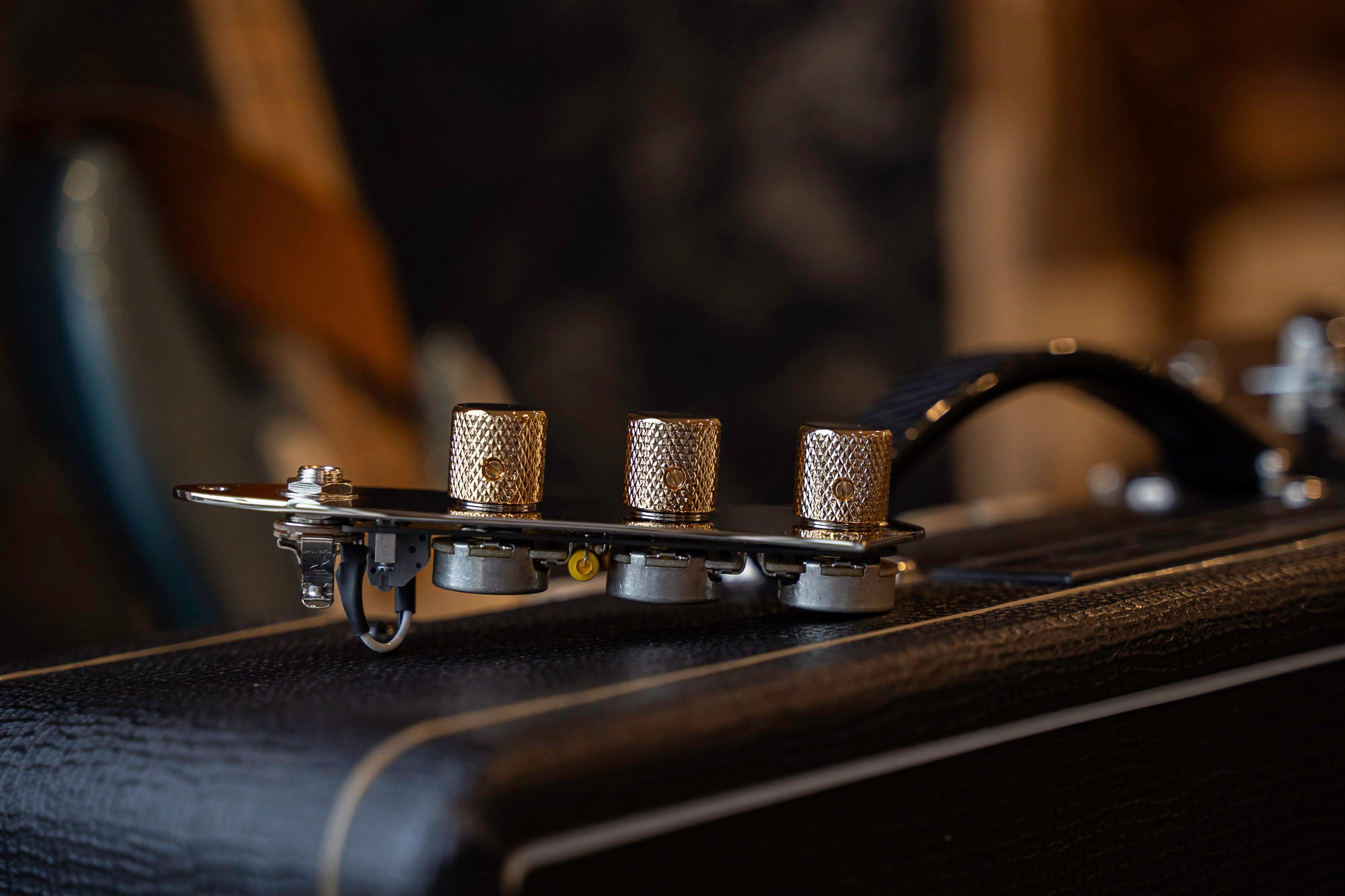

ObsidianWire custom loaded control plate for jass bass showing the pro-wired electronicson a white background

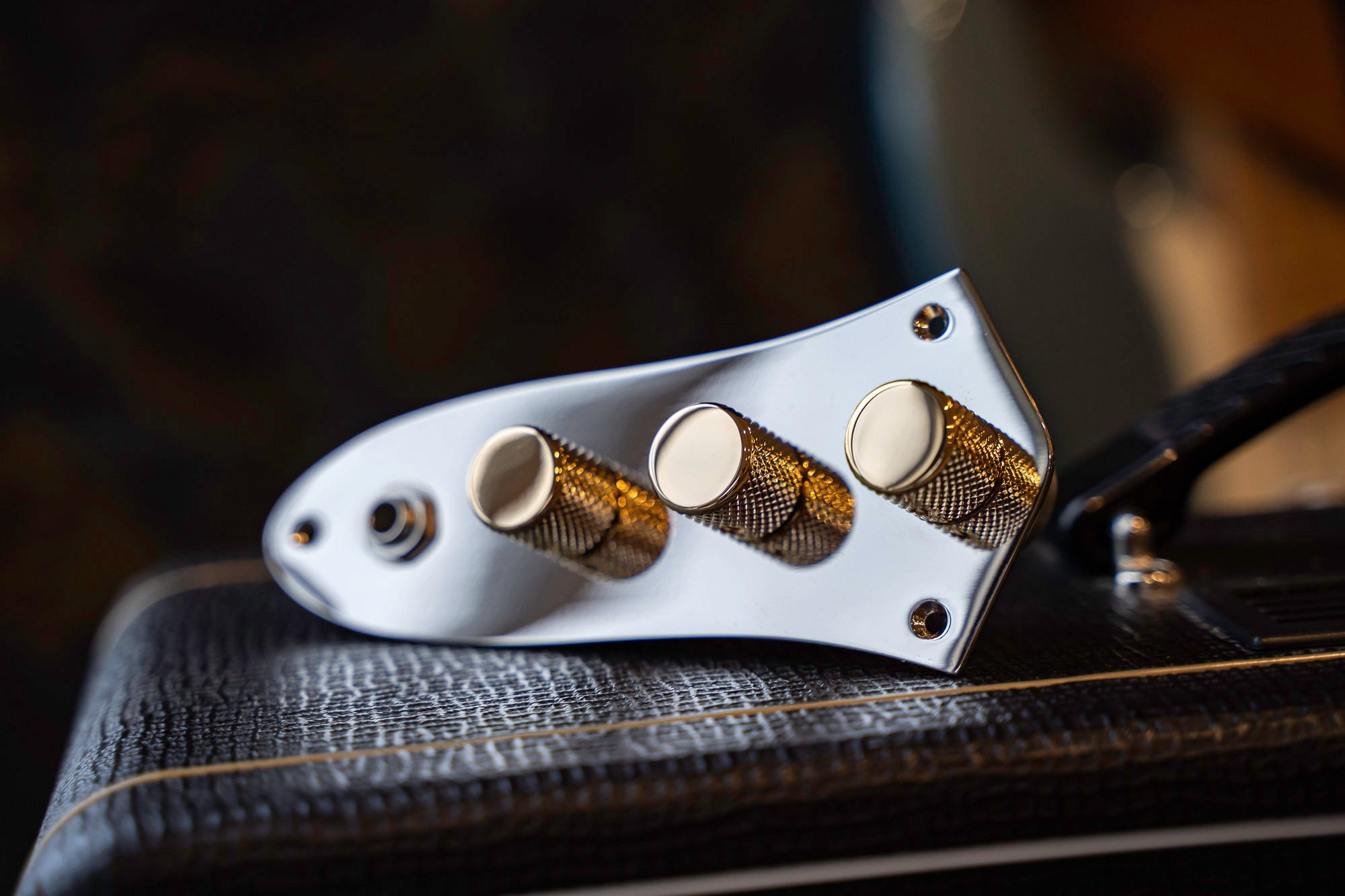

ObsidianWire custom loaded control plate for jass bass showing chrome plate with black knobs on a white background

You Design It, We Build It...

Custom Shop: Loaded Control Plate for Jazz Bass®

Have us build your dream Loaded Jazz Bass control plate, complete with a set of Obsidian® Pro-Wired™ Electronics and a high quality control plate and knobs

Super Easy, Solder-less Install

  • Custom Loaded Jazz Bass Control Plate
  • Built with Obsidian® Pro-Wired™ Electronics
  • Full Brass Obsidian® Control Plate
  • High Quality Knobs
  • Super Easy, Solderless Install

More Info...

The Wiring

JAZZ BASS WIRING HARNESS

The Obsidian® for Jazz Bass wiring harness is a complete electronics upgrade for your Jazz bass with some Obsidian® mods for clarity at all volumes, and a smoother range of tone and volume control.

These are built to be a direct fit for genuine Fender Jazz Bass, and Squier Jazz Bass with some adjustments.

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SMOOTH CONTROL

Even tone and volume control all the way from zero to ten. Obsidian® tone and volume controls incorporate carefully selected and custom-built components, as well as our own clever mods to smooth out the taper of your tone and volume controls, so you get a more even roll off all the way from zero to 10.

The Pickups

Use Your Own Pickups...

Works best with standard two wire jazz bass pickups.

Does not work with active pickups.

The Look

Choose your favorite pickguard and knob combo.

Need inspiration?

Check out some of our favorite combos Here

The Install

Solderless Loaded Pickguard Install

Solderless Install

All Obsidian® loaded pickguards allow for a quick and easy solderless install using our own solderless Pro-Wired™ Electronics

Fitting

Loaded Pickguards (for Strat)

Obsidian® loaded pickguards for Stratocaster® are made to fit modern Fender Strat® bodies with 11 hole pickguards perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Pattern: Modern Fender 11 hole
  • Control Cavity Routing: Fits genuine Fender Stratocaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickup Cavity Routing: Check pickup compatibility before ordering. Humbucker loaded pickguards require full size humbucker routing.
  • Loaded Pickguard Install Information and Pickup Height Guide can be found here.

Control Plates (for Tele)

Obsidian® loaded control plates for Telecaster® are made to fit modern Fender Tele® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Spacing: 150mm from center to center
  • Control Cavity Routing: Fits genuine Fender Telecaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickups: ObsidianWire Pro-Wired Electronics are generally made for standard two wire pickups.

    For different wire types select the Custom Universal harness. the Custom 4-Way harness requires a three wire neck pickup, or a solder join to add a new wire.

Control Plates (for Jazz Bass)

Obsidian® loaded control plates for Jazz Bass® are made to fit modern Fender Jazz Bass® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Control Cavity Routing: Fits genuine Fender Jazz Bass
    Other guitars may need adjustment - Minimum // width 24mm - length 128mm - depth 30mm
  • Pickups: Electronics are made for standard two wire pickups. Other pickups may require modification or soldering.

The Shipping

ObsidianWire Custom Shop Item:

This item is part of our Custom Shop range, built to order, one at a time in Christchurch New Zealand.

Build Time: 5 - 10 Business Days

We aim to build all custom shop orders within 5 - 10 business days (excludes weekends and public holiday). If we expect any delays we will let you know as soon as possible.

Shipping: Ships direct from Christchurch, New Zealand

All custom shop items ship direct from Christchurch, New Zealand. Please allow extra time for International shipping. Check for additional info on our shipping policies below

Shipping Policies

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
X
Xander Gerrard (Manchester, GB)
Perfect Upgrade

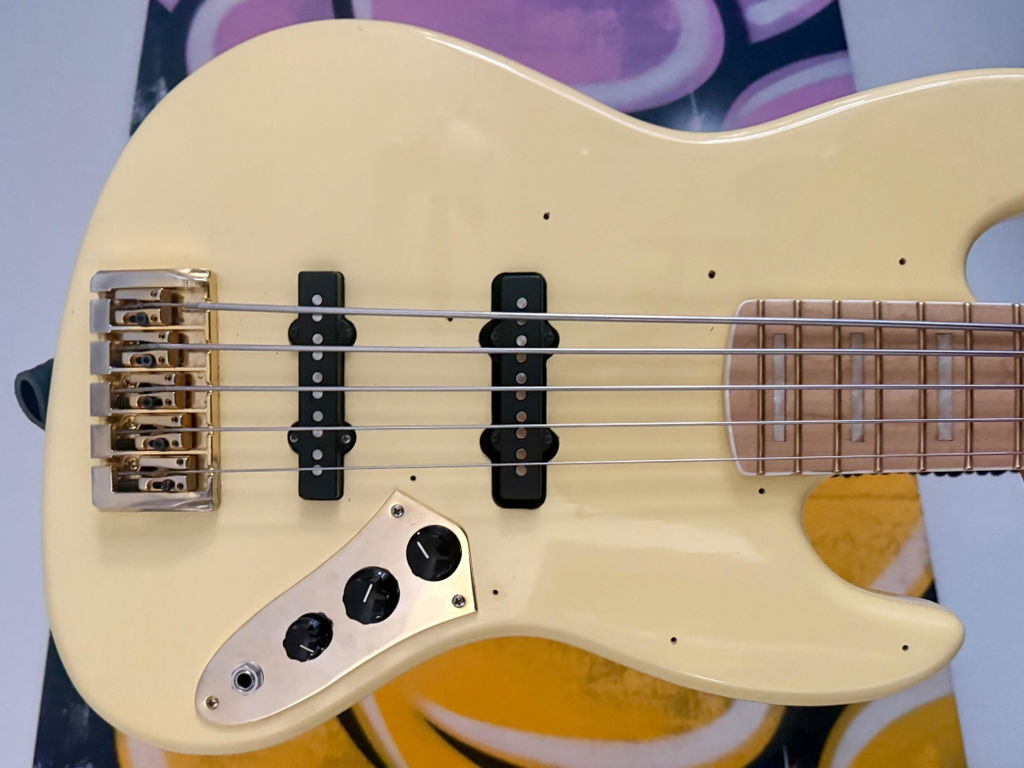

Went to Obsidian Wire to upgrade my electronics for my Fender Jazz due to their ease of install. Surprised with how quickly I received the product, considering it had to come across the world to get to me. Product works perfectly and sounds brilliant! Excellent craftsmanship and easy install!

M
Matthew Culpepper (Albuquerque, US)
My second purchase…

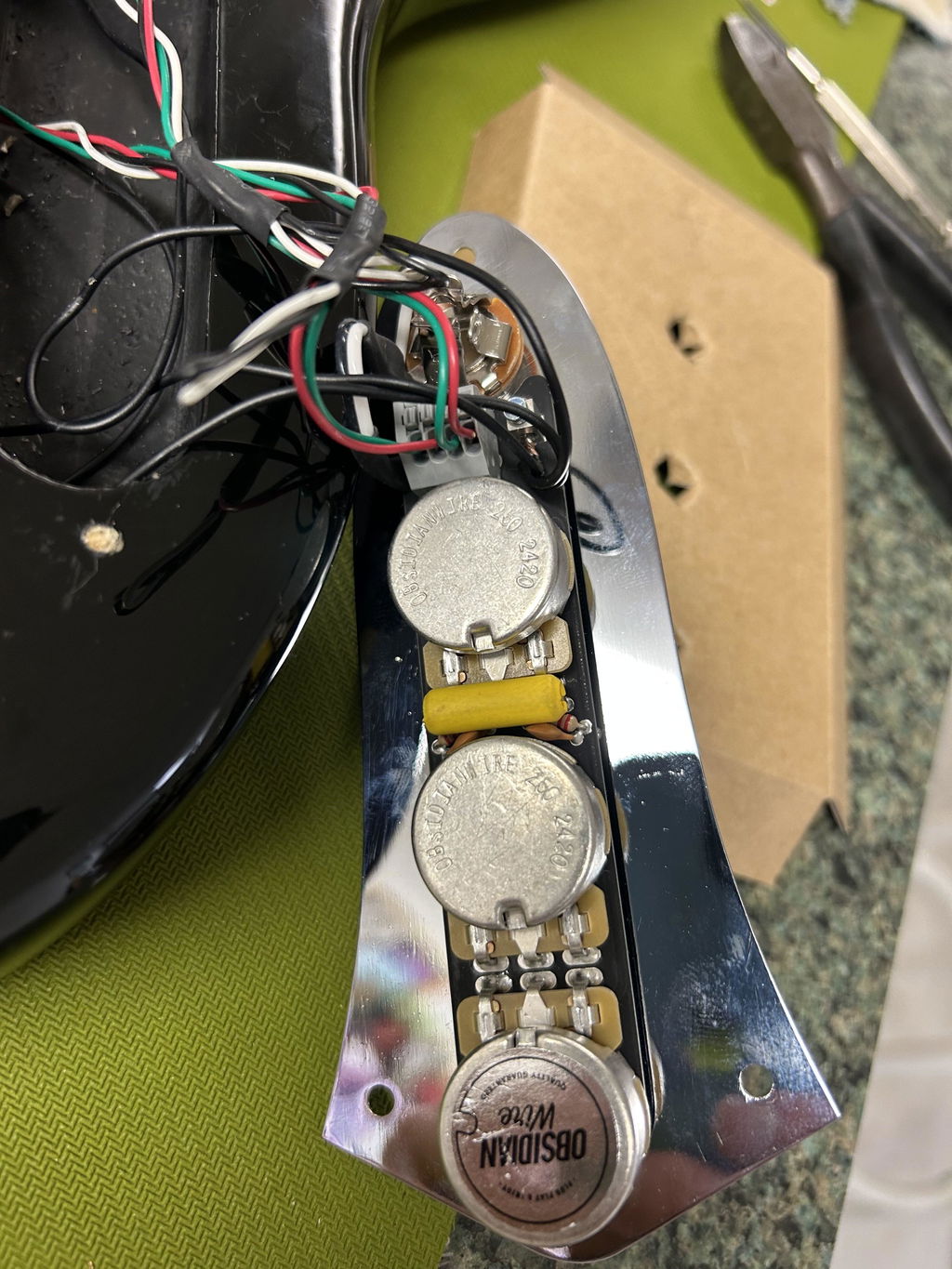

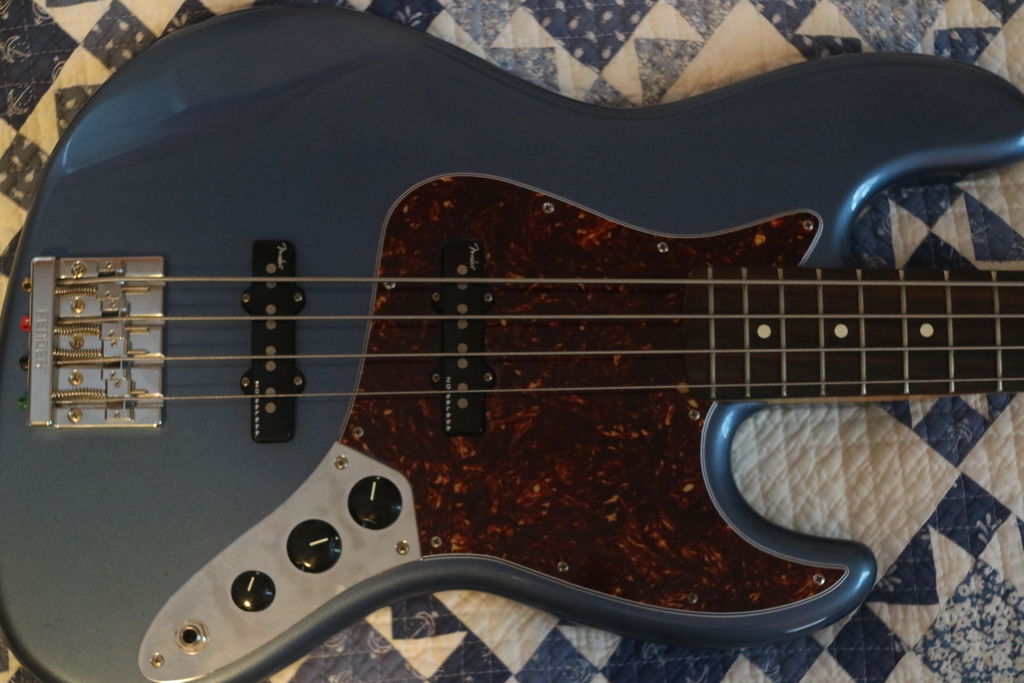

Just FYI I purchased this for a Sire V5 four string . It fit Perfectly. (Just wanted to let other Sire owners know that it fit; at least my model since there is not a lot of info out there.) Of course it was a pretty simple install and sounded great! This is my second time using Obsidian Wire. First time I purchased the set for an American P bass. This company is my go to for a quick install and great sound!
