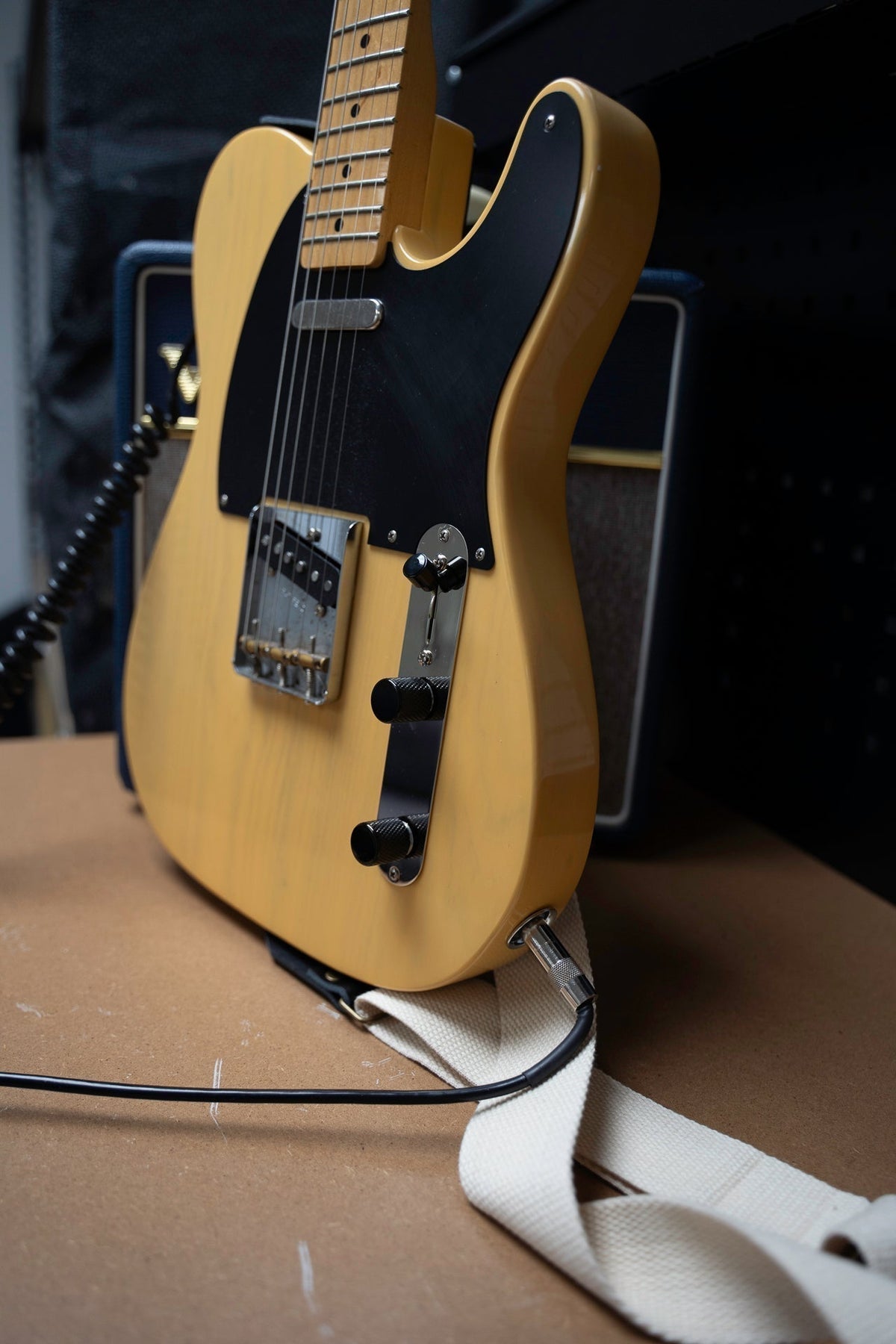

4-Way Telecaster Wiring: 4-Way Tele Switches & Wiring Explained
Want more sounds from your Telecaster without changing the pickups? 4-way Telecaster wiring adds a fourth pickup combination to the traditional three-way Tele switch, giving you an additional series pickup setting with increased output and a different tonal character.
A 4-way Tele switch is a popular upgrade for Telecaster players who want greater versatility while keeping the familiar two-pickup format.
Whether you're researching a 4-way Tele wiring diagram, looking for a 4-way Telecaster wiring harness, or planning a DIY Tele upgrade, this guide explains how four-way switching works, what the fourth position does, and what to consider when choosing a 4-way switch or wiring harness.
What Is 4-Way Telecaster Wiring?
A traditional Telecaster uses a three-way switch to select:
- Bridge pickup
- Bridge + neck pickup
- Neck pickup
4-way Telecaster wiring adds a fourth position, normally connecting the bridge and neck pickups in series.
| Switch Position | Pickup Combination | General Character |
|---|---|---|
| 1 | Bridge | Bright, focused and cutting |
| 2 | Bridge + Neck – Parallel | Classic Tele middle position |
| 3 | Neck | Warm and full |
| 4 | Bridge + Neck – Series | Higher output, thicker and more powerful |
The important difference is that the fourth position isn't simply another version of the normal middle setting.
In the traditional Tele middle position, the two pickups are connected in parallel. With 4-way wiring, the fourth position connects them in series, producing a thicker, higher-output sound with a different tonal character.
What Does a 4-Way Tele Switch Do?
A 4-way Telecaster switch is an upgraded pickup selector that provides four distinct switching positions rather than three.
The switch allows the wiring to route the bridge and neck pickups into different combinations.
The most common arrangement is:
- Position 1: Bridge
- Position 2: Bridge + Neck parallel
- Position 3: Neck
- Position 4: Bridge + Neck series
The series setting is the main reason players install a 4-way Tele switch.
What Does the Series Tele Setting Sound Like?
When the two pickups are connected in series, their signals are combined differently from the conventional parallel setting. The result is typically:
- Higher output
- More midrange
- A thicker sound
- Greater fullness
- A useful alternative to the traditional Tele middle position
- A strong option for overdrive and lead playing
The exact tonal result depends on the pickups, potentiometer values, capacitor and overall guitar circuit.
4-Way Tele Wiring vs 3-Way Tele Wiring
The basic difference is simple: a three-way Tele circuit provides three pickup selections, while a four-way circuit adds the series combination.
Traditional 3-Way Tele
Bridge → Bridge + Neck → Neck
4-Way Tele
Bridge → Bridge + Neck Parallel → Neck → Bridge + Neck Series
The first three sounds remain broadly familiar, while the fourth position provides the additional series combination.
This makes 4-way Tele wiring an attractive modification for players who already like the traditional Telecaster sound but want another useful pickup combination.
Do I Need a Special 4-Way Tele Switch?
Yes. A conventional three-way Tele switch cannot simply be rewired to provide four positions.
A 4-way Tele switch has the additional switching contacts required to create the extra pickup combination.
There are several types of four-position switches available, and the exact terminal arrangement can vary between manufacturers.
This is important when following a 4-way Tele wiring diagram: the physical appearance of a switch does not necessarily tell you which terminals perform each function.
Always follow the wiring diagram supplied for the specific switch or harness you are using.
Do Telecaster Pickups Need Modification for 4-Way Wiring?
This is one of the most important considerations when installing a four-way Tele circuit.
For the series combination to work correctly, the neck pickup needs to have an isolated ground rather than having its metal cover permanently connected to the pickup's coil ground.
Many traditional Telecaster neck pickups have the cover connected to the pickup ground.
A 4-way Tele wiring modification may therefore require the neck pickup cover ground to be separated from the pickup coil ground.
Why Does the Neck Pickup Cover Matter?
The metal neck pickup cover needs to remain grounded for shielding and noise reduction. However, if the cover and coil ground are permanently connected, the switching circuit may not be able to place the neck pickup in series correctly.
The solution is generally to provide a separate ground connection for the neck pickup cover.
This allows the pickup coil and cover to be electrically separated while keeping the cover grounded.
If you're unsure whether your neck pickup is compatible with 4-way wiring, check the pickup manufacturer's wiring information before modifying it.
See Whats Required to do the Pickup Mod
4-Way Telecaster Wiring Diagram
A 4-way Tele circuit contains more connections than a conventional three-way Tele circuit because the switch has to perform the additional series and parallel routing.
The exact wiring depends on the switch design, pickup construction and control configuration.
For that reason, it's important not to assume that every four-way switch uses the same terminal layout.
If you're wiring a Tele from scratch, use the diagram supplied with your particular switch.
If you're installing a pre-built 4-way Tele wiring harness, the switching and associated connections can already be assembled and tested before installation.
4-Way Tele Wiring Harness
A 4-way Telecaster wiring harness can be a convenient alternative to wiring the entire circuit yourself.
Instead of purchasing individual components and working out the switching configuration, a pre-built harness can combine the relevant electronics into one installation.
Depending on the harness, this can include:
- 4-way pickup selector switch
- Volume and tone controls
- Capacitors
- Wiring
- Output connection
- Pre-configured switching
- Connectors or installation hardware
A pre-built harness can be particularly useful if you want to upgrade an existing Telecaster without spending time troubleshooting a more complicated switching circuit.
Solderless 4-Way Tele Wiring
A solderless 4-way Telecaster wiring harness takes the concept one step further by reducing or eliminating the need to solder the guitar's pickup and control connections.
This can make installation considerably more approachable for players who don't regularly work with a soldering iron.
A solderless system can also make future pickup changes easier because the connections can be disconnected and reconfigured without repeatedly soldering components inside the control cavity.
Why Choose Solderless 4-Way Tele Wiring?
- Faster installation
- No soldering required for supported connections
- Easier pickup changes
- Cleaner and more repeatable installation
- Less risk of damaging components through excessive heat
- Easier experimentation with different pickups
The important thing is to make sure the harness is compatible with your particular Telecaster, pickups and control plate.
4-Way Tele Switch: Is It Worth Upgrading?
The main appeal of a four-way switch is that it adds a genuinely different pickup combination rather than simply rearranging the existing three sounds.
The series position can be particularly useful for:
Clean Playing
A fuller alternative to the standard Tele middle position.
Blues
Additional output and thickness can work well with amplifier breakup.
Rock
The series combination can provide a more powerful sound than the conventional Tele settings.
Lead Playing
The increased fullness can provide a useful contrast to the bridge pickup.
Recording
The additional pickup combination gives you another tonal option without changing guitars.
4-Way Tele Wiring With Modern Pickups
Four-way switching can be used with many modern Telecaster pickup sets, but pickup wiring conventions vary between manufacturers.
Different manufacturers may use different wire colours and grounding arrangements.
Before connecting a new pickup to a 4-way Tele circuit, identify:
- Pickup hot/output wire
- Pickup coil ground
- Neck pickup cover ground
- Bridge pickup ground
- Shielding connections, where applicable
Do not rely solely on wire colour. Pickup manufacturers use different colour codes.
If you're installing aftermarket pickups, use the wiring information provided by the pickup manufacturer.
Can I Install a 4-Way Switch in Any Telecaster?
Not necessarily.
Before purchasing a 4-way Tele wiring harness or switch, check the following:
Control Plate Compatibility
The switch needs to fit the control plate and cavity in your guitar.
Switch Dimensions
Different four-way switches can have different dimensions and mounting arrangements.
Pickup Compatibility
Your pickups need to be compatible with the required switching configuration.
Neck Pickup Grounding
The neck pickup may require a separate cover ground for series operation.
Control Layout
Make sure the harness matches your guitar's control plate and knob arrangement.
Harness Dimensions
Pre-built harnesses can use specific potentiometer, switch and control plate dimensions.
If you're purchasing a complete loaded control plate, also check that the control plate and knobs are compatible with the harness dimensions.
4-Way Tele Wiring: Frequently Asked Questions
Does a 4-way Tele switch add another pickup?
No. A four-way switch doesn't add another pickup. It adds another combination of the existing bridge and neck pickups.
Is the fourth position louder?
The series combination will generally produce a higher-output, thicker signal than the conventional parallel combination, although the exact result depends on the pickups and circuit.
Does 4-way Tele wiring change the normal Tele sounds?
The objective of the standard four-way arrangement is to retain the familiar bridge, parallel and neck settings while adding the series combination.
Can I use a 4-way switch with humbuckers?
Four-way Tele switching is primarily associated with two-pickup Tele configurations, but switching options can be designed for different pickup configurations. The correct circuit depends on the pickups and desired switching arrangement.
Can I install a 4-way Tele switch myself?
Yes, if you're comfortable working on guitar electronics and can follow the correct wiring diagram.
However, the circuit is more complicated than a conventional three-way Tele circuit, particularly because of the additional switching and neck pickup grounding requirements.
Is solderless 4-way Tele wiring easier?
A purpose-designed solderless harness can simplify installation substantially by reducing the amount of soldering required. The exact installation process depends on the harness design.
Should You Choose a 4-Way Telecaster Wiring Harness?
If you like the traditional Telecaster but want an additional thicker, higher-output pickup sound, 4-way Tele wiring is a straightforward way to expand the instrument's tonal range.
For a DIY electronics project, a standalone four-way switch and wiring diagram can be all you need.
For a faster installation, a pre-built 4-way Telecaster wiring harness can provide the required switching and electronics in one package.
And if you want to avoid soldering, a solderless 4-way Tele wiring harness can make the upgrade even simpler.
Ready to Add 4-Way Switching to Your Tele?
ObsidianWire 4-way Telecaster wiring options are designed for players who want additional Telecaster pickup combinations without adding another pickup or changing the basic character of the instrument.
Explore our 4-way Telecaster wiring options to find a configuration compatible with your guitar and pickups.
Explore Telecaster Wiring Harnesses
See Telecaster Loaded Control Plates
Related Telecaster Wiring Guides
- Telecaster Wiring – Explore Telecaster wiring, pickup combinations and control configurations.
- 4-Way Telecaster Wiring – Learn how four-way switching works and what the additional series position does.
- Telecaster Loaded Control Plate vs Electronics Only – Understand the difference between a complete loaded control plate and electronics-only installation.
- Solderless Telecaster Wiring – Learn how solderless guitar wiring works and how it can simplify a Telecaster electronics upgrade.
- Pickup Wiring & Colour Codes – Check pickup wiring conventions before connecting aftermarket pickups.
4-Way Tele Wiring at a Glance
| Feature | 3-Way Tele | 4-Way Tele |
|---|---|---|
| Bridge pickup | Yes | Yes |
| Neck pickup | Yes | Yes |
| Bridge + Neck parallel | Yes | Yes |
| Bridge + Neck series | No | Yes |
| Additional switch position | No | Yes |
In short: a 4-way Telecaster switch adds a useful fourth sound by connecting the bridge and neck pickups in series. For players looking for more versatility from a traditional two-pickup Telecaster, it's one of the simplest ways to expand the available pickup combinations.
